USB box

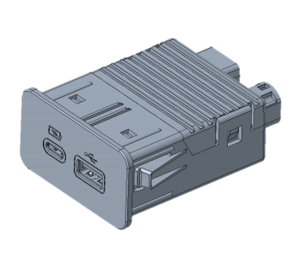

The front USB box product is an A-port charging 12W + USB2.0 data transmission, and the C port supports 60W high-power charging
Electricity products. Port A adopts automotive-grade MPQ4428C scheme, which has passed AEC-Q100 Grade1 certification, integrates BC1.2 charging protocol, provides 5V/2.1A charging current, and can support data transmission. The C port adopts Richtek's RTQ7880 plan, which also passes AEC-Q100 certification, supports BC1.2, Divider mode (APPLE), 1.2V/1.2V mode (SAMSUNG), QC3.0, PD3.0, Huawei FCP fast charging protocol. The product has input overvoltage/undervoltage protection, overcurrent protection, short circuit protection, overtemperature protection and other functions, which can meet the basic needs of users charging in the car.
The front USB box product is an A-port charging 12W + USB2.0 data transmission, and the C port supports 60W high-power charging
Electricity products. Port A adopts automotive-grade MPQ4428C scheme, which has passed AEC-Q100 Grade1 certification, integrates BC1.2 charging protocol, provides 5V/2.1A charging current, and can support data transmission. The C port adopts Richtek's RTQ7880 plan, which also passes AEC-Q100 certification, supports BC1.2, Divider mode (APPLE), 1.2V/1.2V mode (SAMSUNG), QC3.0, PD3.0, Huawei FCP fast charging protocol. The product has input overvoltage/undervoltage protection, overcurrent protection, short circuit protection, overtemperature protection and other functions, which can meet the basic needs of users charging in the car.
